1. Electricity is the set of physical phenomena associated with the presence and flow of electric charge.

2. Electrons have a negative charge.

3. An Electric (force) field surrounds any charged object – it spreads out – weakens with distance.

4. Charge is measured in Coulombs.

5. 1 Coulomb =1 amp per second.

6. In a good conductor the valence electrons can be easily forced to move from one atom to the next.

7. A conductor is a material that has a large number of free electrons that continually jump to other atoms.

8. Good electrical conductors are copper and aluminium. Gold, silver, and platinum are also good conductors, but are very expensive.

9. An insulator is a material that has only a few free electrons. In insulators, the electrons are tightly bound by the nucleus.

10. Good electrical insulators are Rubber, Porcelain, Glass, and Dry Wood.

11. Current (I) is the movement of charge through a conductor. Electrons carry the charge.

12. Unit of measurement current is Amperes (A).

13. The fundamental electric quantity is Charge.

14. Current is rate of flow of negatively-charged particles, called electrons, through a predetermined cross-sectional area in a conductor.

15. Resistance – The ability to resist current leakage through and over the surface of the material.

16. The resistance, expressed in ohms ( named after George ohm)

17. Resistance depends on Resistivity, Length, Cross-sectional area and Temperature.

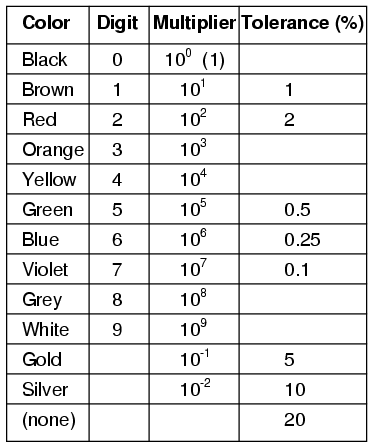

Resistance Colour Code

18. Ammeter is used to measure amount of current.

19. Voltmeter is used to measure potential difference between two points.

20. Instrument used to measure resistance is Ohm meter.

21. A capacitor is an energy storage element.

22. It can store electrical voltage for periods of time.

23. A Capacitor consists of two conducting metal plates with an insulating sheet of material in between.

24. When a capacitor has a difference in voltage across its plate, it is said to be charged.

25. Unit of capacitance is Farad

26. Inductance (L) is the property of an electrical circuit that opposes change in current.

27. Inductor is a passive energy storage element that stores energy in the form of magnetic field.

28. The henry (symbolized H) is the Standard International ( SI ) unit of inductance.

29. Ohm’s law states that electric current is proportional to voltage and inversely proportional to resistance.

30. When current flows through a conductor, heat energy is generated in the conductor.

31. The heating effect of an electric current depends on resistance, amount of current and time for which current flows.

32. Heating effect of current is used in Iron box, electric water heater, etc.

33. The magnetic field carries the invisible force of magnetism

34. Wherever an electric current exists, a magnetic field also exists.

35. Whenever current flows through a conductor, a magnetic field is created around the conductor.

36. Rule for remembering the direction of the magnetic field around a conductor is called the righthand clasp

37. If a person grasps a conductor in one’s right hand with the thumb pointing in the direction of the current, the fingers will circle the conductor in the direction of the magnetic field.

38. An electromagnet is a type of magnet in which the magnetic field is produced by an electric current.

39. In electromagnets, magnetic field disappears when the current is turned off.

40. Electromagnets are used in motors, generators, relays, loudspeakers, hard disks, MRI machines, scientific instruments, and magnetic separation equipment.

41. Electromagnetic Induction creates a voltage or current in a conductor when a magnetic field change.

42. In a transformer, alternating current in one winding induces a changing magnetic field in the transformer core

43. Transformer work on the principle of Electromagnetic induction.

44. In Generator magnetic field of the rotor Induces a voltage in the stator windings.

45. Electromagnetic induction was first discovered by Michael Faraday.

46. Dynamo works on the basis of Faraday’s law.

47. Whenever a magnetic field is moved past a conductor a voltage is induced in the conductor.

48. Farad determined that a capacitor has a value of one farad of capacitance if one volt of potential difference applied across its plates moved one coulomb of electrons from one plate to the other.

49. Electric bell functions by means of an electromagnet.

50. Lenz’s law states that the polarity of the induced emf is such that it tends to produce a current which opposes the change in magnetic flux that produces it.

51. When a current in a coil changes, it induces a back emf in the same coil.

52. The magnitude of the induced emf in a circuit is equal to the time rate of change of magnetic flux through the circuit.

53. The induced emf can be increased by increasing the number of turns N of a closed coil.

54. By accelerating magnet inside coil, current in it increases.

55. Total number of magnetic field lines passing through an area is called magnetic flux.

56. Magnitude of induced e.m.f is proportional to rate of change of magnetic flux linkage.

57. In transformer, core is made up of soft iron in order to pass maximum magnetic flux.

58. Currents that flow in circles inside a disc are known as eddy currents.

59. When field is parallel to plane of area, magnetic flux through coil is zero.

60. An open coil has infinite resistance and zero inductance.

61. In case of an inductance, current is proportional to magnetic field.

62. For a purely inductive circuit Actual power of the circuit is zero.

63. Lenz’s law is a consequence of the law of conservation of energy.

64. The co-efficient of coupling between two air core coils depends on mutual inductance and self-inductance of two coils.

65. A crack in the magnetic path of an inductor will result in reduced inductance.

66. Inductance will oppose the change in circuit current.

67. Weber is the unit of magnetic flux.

68. C cannot be used for magnetizing and electroplating.

69. Inductors acts as a short circuit for DC.

70. Long distance transmission is easy for AC.

71. When the motor is at its maximum speed then back emf will be maximum

72. Reluctance in a magnetic material is a property by virtue of which it opposes the creation of Magnetic flux.

73. Coulomb’s First Law states that unlike poles attract each other and like poles repel each other.

74. The electrical entity inductance can be compared to the mechanical entity inertia.

75. In electroplating, solution must be of salt of metal to electroplate with.

76. Types of electrodes used during electrolysis affect the products of electrolysis.

77. A battery converts chemical energy to electrical energy.

78. When electric current is passed through a bulb, the bulb gives light because of heating effect of current.

79. The process of producing chemical decomposition of a compound by passing electricity through the compound is called electrolysis

80. The filament used in in electric heater is of high resistance.

81. Mica is bad conductor of electricity but good conductor of heat.

82. Conversion of temperature into electric voltage is done with thermistor

83. Wire wound variable resistance is known as rheostat

84. Potential difference between ends of conductor maintained by battery is

85. SI unit of conductivity of material isΩ-1m-1.

86. Ohmic devices are devices that consequently obey Ohm’s law.

87. Filament bulbs are best examples of the non-ohmic devices

88. Reciprocal of resistance is called conductance

89. Living creature that turns itself into living battery is eel

90. Characteristic specific resistance of wire is its resistivity

91. Sunlight is directly converted into electrical energy by using solar cells.

92. To pass current through ammeter it should be connected in Series in circuit.

93. Inside a hollow conducting sphere electric field is zero.

94. To obtain a high value of capacitance, the permittivity of dielectric medium should be high.

95. 1 F is theoretically equal to ratio of 1 C to 1 V.

96. Bulb in street lighting are connected in parallel.

97. Third pin of a 3-pin plug is thicker and longer for protection purpose.

98. Our household apparatus is connected in parallel

99. Internal resistance of ideal voltage source is zero

100. Internal resistance of ideal current source is infinity
